3.3mA Robbery Iron Square Casing Shield 1200T 3 Phase Transformer with Mutual Inductor

Product Categories

Jiaxing Wisdom Electronic Tech Co., Ltd.

Contact Now

Brand Name : WSD

Model Number : WSD-717T

Place of Origin : CHINA

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200000/day

Delivery Time : 14-21days

Packaging Details : Cartons / Pallets

Max current : 6-10A

Primary current : 1-1.5A

Secondary current : 3.3-5mA

Accuracy class : 0.02

Application : electric energy meters

Product name : three phase transformer

Contact Now

3 phase current transformer 3.3mA robbery Iron casing shield 1200T with square case mutual inductor

 Suitable for high precision, small phase error requirments of three-phase electric energy meters

 More space in the meter can be saved with combined current transformer

 Linear output current, high precision

 Encapsulated with epoxy resion,with high insulation ability

 It accords with IEC60044-1 0.05 class, 0.1 class, 0.2 class

Parameters:

Rated primary current	Max primary current	Rated secondary current	Turn ratio	Accuracy class	DC component	Shileding	Load resistance
I p(A)	I max(A)	I s(mA)	N	(%)	(%)	(T)	Rb
1	10	3.3	1:300	0.02/0.05/0.1/0.2	unavailable	300mT	5Ω,10Ω,20Ω
1.5	6	5	1:300	0.02/0.05/0.1/0.2









Working temperature			−40℃~ 85℃
Isolation voltage			4000Vrms, 1 Min, No breakdown, No arcing
Insulation resistance			≥1000MΩ
Operating temperature			50Hz~60Hz

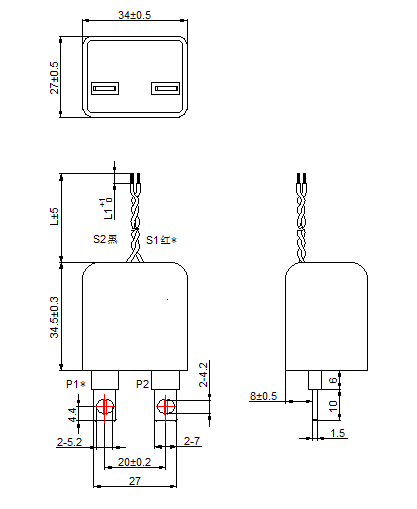

Dimension:
