Slot Type Primary Mini Current Transformer High Precision with Electric Wire

Product Categories

Jiaxing Wisdom Electronic Tech Co., Ltd.

Contact Now

Brand Name : WSD

Model Number : WSD-716-IV

Place of Origin : CHINA

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Delivery Time : 14-21days

Packaging Details : Cartons / Pallets

Max current : 80-100A

Primary current : 5-10A

Secondary current : 2-10mA

Accuracy class : 0.1

Application : electricity meter

Product name : small current transformer

Contact Now

Mini current transformer minus primary with electric wire slot type primary current transformers

 Suitable for single-phase electricity meter as well as anti-tempering electricity meter

 Compact and delicate appearance

 Linear output current, high precision

 Encapsulated with epoxy resion,with high insulation ability

 It accords with IEC60044-1 0.05 class, 0.1 class, 0.2 class

Parameter

Rated primary current	Max primary current	Rated secondary current	Turn ratio	Accuracy class	DC component	Shileding	Load resistance
I p(A)	I max(A)	I s(mA)	N	(%)	(%)	(T)	Rb
5	60	5	1:1000	0.1/0.2	unavailable	unavailable	5Ω,10Ω,20Ω
5	60	2.5	1:2000	0.1/0.2
10	60	5	1:2000	0.1/0.2
10	60	10	1:1000	0.1/0.2
5	80	2.5	1:2000	0.1/0.2
10	80	5	1:2000	0.1/0.2
10	100	4	1:2500	0.1/0.2




Working temperature			−40℃~ 85℃
Isolation voltage			4000Vrms, 1 Min, No breakdown, No arcing
Insulation resistance			≥1000MΩ
Operating temperature			50~60Hz

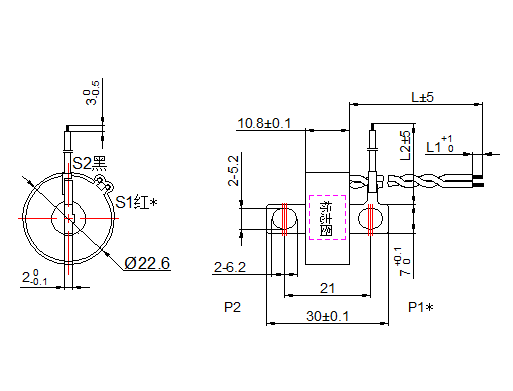

Dimension:

Slot Type Primary Mini Current Transformer High Precision with Electric Wire
