Waterproof Single Phase Current Transformer with Shrink Tube Lead Wire

Jiaxing Wisdom Electronic Tech Co., Ltd.
Contact Now

Waterproof Single Phase Current Transformer with Shrink Tube Lead Wire

Brand Name : WSD

Model Number : WSD-734

Place of Origin : CHINA

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200000/day

Delivery Time : 14-21days

Packaging Details : Cartons / Pallets

Max current : 60-80A

Primary current : 5-10A

Secondary current : 2-5mA

Turns ratio : Customized

Application : electricity meter

Product name : one phase transformer

Contact Now

Single phase current transfromer waterproof CT 1 - phase typ current transformer with shrink tube lead wire

Suitable for single-phase electricity meter as well as anti-tempering electricity meter

Compact and delicate appearance

Linear output current, high precision

Encapsulated with epoxy resion,with high insulation ability

It accords with IEC60044-1 0.05 class, 0.1 class, 0.2 class

Parameters:

Rated primary current Max primary current Rated secondary current Turn ratio Accuracy class DC component Shileding Load resistance
I p(A) I max(A) I s(mA) N (%) (%) (T) Rb
5 60 2.5 1:2000 0.1/0.2 unavailable unavailable 5Ω,10Ω,20Ω
10 60 5 1:2000 0.1/0.2
10 60 10 1:1000 0.1/0.2
5 80 2.5 1:2000 0.1/0.2
10 80 5 1:2000 0.1/0.2





Working temperature −40℃~ 85℃
Isolation voltage 4000Vrms, 1 Min, No breakdown, No arcing
Insulation resistance ≥1000MΩ
Operating temperature 50~60Hz

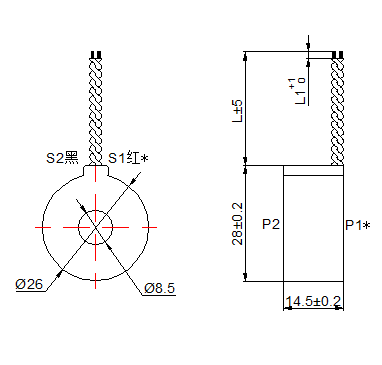

Dimension:

Waterproof Single Phase Current Transformer with Shrink Tube Lead Wire
